Descripción
Electro-portable circular cutter for cutting porcelain sheets and all types of ceramic tiles. Suitable for dry cutting or wet cutting. Suitable for natural stone and sintered stone. Especially suitable for large-format pieces. It is essential to use it on SLIM SYSTEM G2 guides.
CHARACTERISTICS

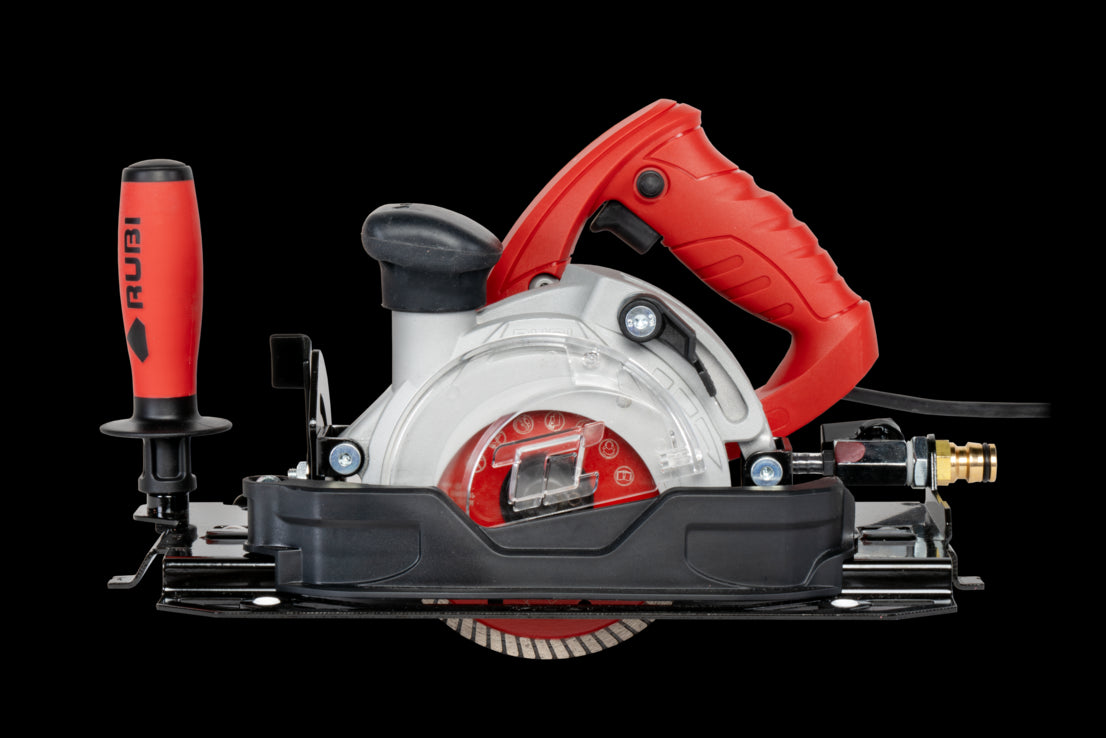

- The TC-125 G2 is an electro-portable circular cutter specially designed for cutting porcelain sheet and all types of ceramic tiles. It is also suitable for natural stone and sintered stone.
- Especially suitable for large-format pieces.
- The TC-125 is equipped with a sliding skate on adjustable radial bearings. It is essential to use it on SLIM SYSTEM G2 guides.
- The double system for reducing/controlling dust generated during cutting makes the TC-125 suitable for dry cutting by direct connection to a vacuum cleaner (Ø32mm)* or wet cutting, using the regulating valve and hose connection (Ø16mm)**.
- Compatible with Ø125 or Ø115 mm discs. (Suitable for discs with TVA type reinforcement plate). Equipped with a SAFETY lock switch that prevents INVOLUNTARY start-up. Electric cable with PRCD (differential).
- The disc guard, made of injected aluminium with a transparent polycarbonate cover, has a quick opening and closing system. IT FACILITATES the change of disc and MINIMISES the projection of particles and water.
- The tilting side guard for miter cutting REDUCES water splashes and IMPROVES dust extraction.
- The TC-125 includes a TCR-125 SUPERPRO blade (dry cutting, not suitable for mitering), a carrying case and accessories. It makes transport and handling easier.
- To complete the KIT, in addition to the reference of the circular cutter, of the desired voltage, it is necessary to purchase reference #51949 which includes the guides (2 of 155 cm and 1 of 65 cm), the suction cups and the fixing clamps.
- *The TC-125 also includes a vacuum adapter (Ø37, 42 and 50 mm). **The TC-125 does not include the quick connector for the water hose.
- Includes a set of suction cups suitable for all surfaces to secure the guides to the piece.
- With sliding skate, made of carbon steel, on double sets of adjustable stainless steel radial bearings.
- Double dust reduction/control system. Dry and wet cutting.
- Cutting head adjustable in height (cutting effect) and foldable from 0° to 45°. (miter). FAST adjustment system.
SPECS
- Power supply: 220-240 V 50-60 Hz
- Revolutions per minute: 13800
- Power watts: 1250 W
- Cutting length: 320 cm
- Cutting height: 20-25 cm
- Miter cut thickness: 14-38 mm
- Outer diameter: 115-125mm
- Inner diameter: 22.2 mm
- Length x width x height (working dimensions): 36 x 24.5 x 21 cm
INCLUDES
- 2 guides of 155 cm
- 1 guide of 65 cm
- 2 sergeants
- 2 fixing suction cups
- 1 Allen key
- Carrying bags
- Briefcase
- Cutter
