Descripción
The RUBI DC-250 1200 electric cutting table is a moving head electric cutter, designed for general ceramic tile cutting, for cutting type BIII tiles and glazed stoneware. It is also equipped with a 1.5 HP direct transmission motor assembly and thermal protector.
The sliding motor assembly, on bearings, of the DC-250 offers maximum precision and cutting quality, as well as the possibility of making miter cuts on pieces up to 106 cm in length.
The DC-250 includes a CEV-SUPERPRO ø250 model diamond blade; except references 54997 and 54998 that have CPA SUPERPRO ø250 disc.
The continuous band disc will allow you to make cuts with optimal results and good performance.
The 1.5 HP motor, with thermal protector, is perfect for cutting porcelain stoneware pieces.
The DC-250 1200, on the other hand, has an adjustable square up to 60º that facilitates angular cutting in large-format pieces.
Its large work area (100 x 48.5 cm) is ideal for working with large-format ceramic tiles and the working height of 84.5 cm offers the professional better ergonomics. At RUBI we have always been concerned about the health of the professional. Within the design of our tools, the concept of ergonomics is always very present, since we believe that safety and minimizing the risk of injury at work are essential for health and correct execution.
HIGHLIGHTED FEATURES
- DC-250 1200 with adjustable ruler (0 to 60º) with side stop
- Extruded aluminum tables, removable to facilitate cleaning of the machine.
- Foldable legs with built-in wheels for more comfortable transportation.
- For Coating Ceramics, Glazed Stoneware, Porcelain Stoneware and other materials.
- Single-phase direct drive motor, 1.1 kW (1.5 HP) with thermal protector.
- Disc cooling by water pump with flow regulator.
- Chassis of great structural rigidity.
- Mobile head on bearings and foldable at 45º for miter cuts.
- Includes Diamond disc model CEV-SUPERPRO Ø250 mm.
- Machine served without cable.
SPECIFICATIONS
- Cutting length - 108 cm
- Cutting length with miter saw effect - 120.5 cm
- Maximum cutting thickness 1 or 2 passes - 61/90 mm
- Miter cut length - ∞ cm
- Miter cut thickness - 50 mm
- Power - 220V-60Hz.
- Revolutions per minute - 2790
- Disc included -
- Outer diameter - 250 mm
- Cutting effect -
- Length width height - 160x82x131 cm
- Net weight - 60kg
- Gross weight - 75 kg

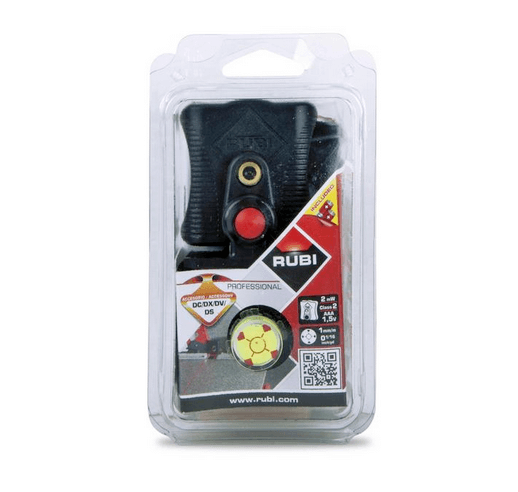

Laser&Level ACCESSORIES KIT FEATURES
- Circular bubble level to facilitate the correct positioning of the electric cutter.
- Spirit level accuracy: 1mm/m.
- Laser tracer that indicates the path of the disc and facilitates the placement of the material.
- Laser Power: 2 mW
- Laser Class: 2
THE KIT INCLUDES
- DC-250 1200 Zero Dust cutting table
- Plug cable 230V - 50 Hz
- Laser&Level accessory kit
