The TX-710 MAX professional manual cutter is perfect for INTENSIVE cutting of all types of ceramic tiles, ideal for porcelain stoneware and extruded stoneware.
HIGHLIGHTED FEATURES
- High precision in scratching.
- Great efficiency of the entire system.
- Reinforced components. High robustness.
- High separation power (1,200 kg) - MASTER POWER. Operable with one hand.
MATERIALS
- For professional cutting of all types of ceramic tiles, ideal for porcelain stoneware and extruded stoneware.
CHARACTERISTICS
- Tubular steel guides Ø30 mm x 2 mm wall thickness.
- Head with extra-long aluminum slides, with “self-lubricated” friction bushings.
- Mobile separator with aluminum stopper, equipped with a plastic protector to PREVENT marking on the most DELICATE surfaces.
- The locking of the stopper, by means of a ratchet mechanism, and the unlocking, by trigger, allows scratching and separating with just one hand. Greater SPEED of use. Increases PERFORMANCE in both thin and thick materials.
- Better VISIBILITY of the scratching and cutting area.
- Aluminum injection base, reinforced by a central rib, for greater ROBUSTNESS.
- Galvanized steel floating tables increase STABILITY when cutting.
- Rotating square, with central pivot. Greater PRECISION in angular cuts.
- With side stop for repetitive cuts and narrow strips.
- Equipped with 2 additional arms, for large format ceramics.
- Handle with soft-grip handle for greater ERGONOMICS and COMFORT.
- Equipped with 8 mm and 22 mm EXTREME rollers. Compatible with the entire range of PLUS wheels.

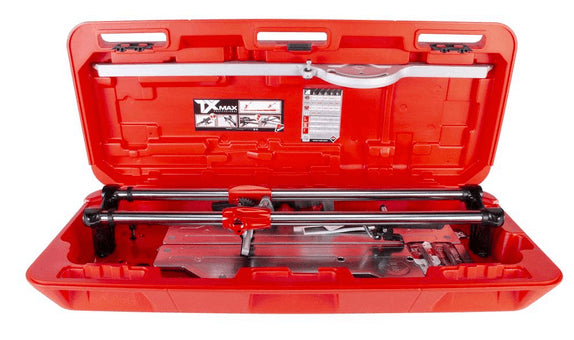

- Includes suitcase-case.
SPECIFICATIONS
- Cutting length - 71 cm
- Diagonal cut length - 50x50 cm
- Cutting height - 3-21 mm
- Separator power - 1200 kg
-
With suitcase/case - Yes
- Weight with suitcase-case - 13.3 kg
